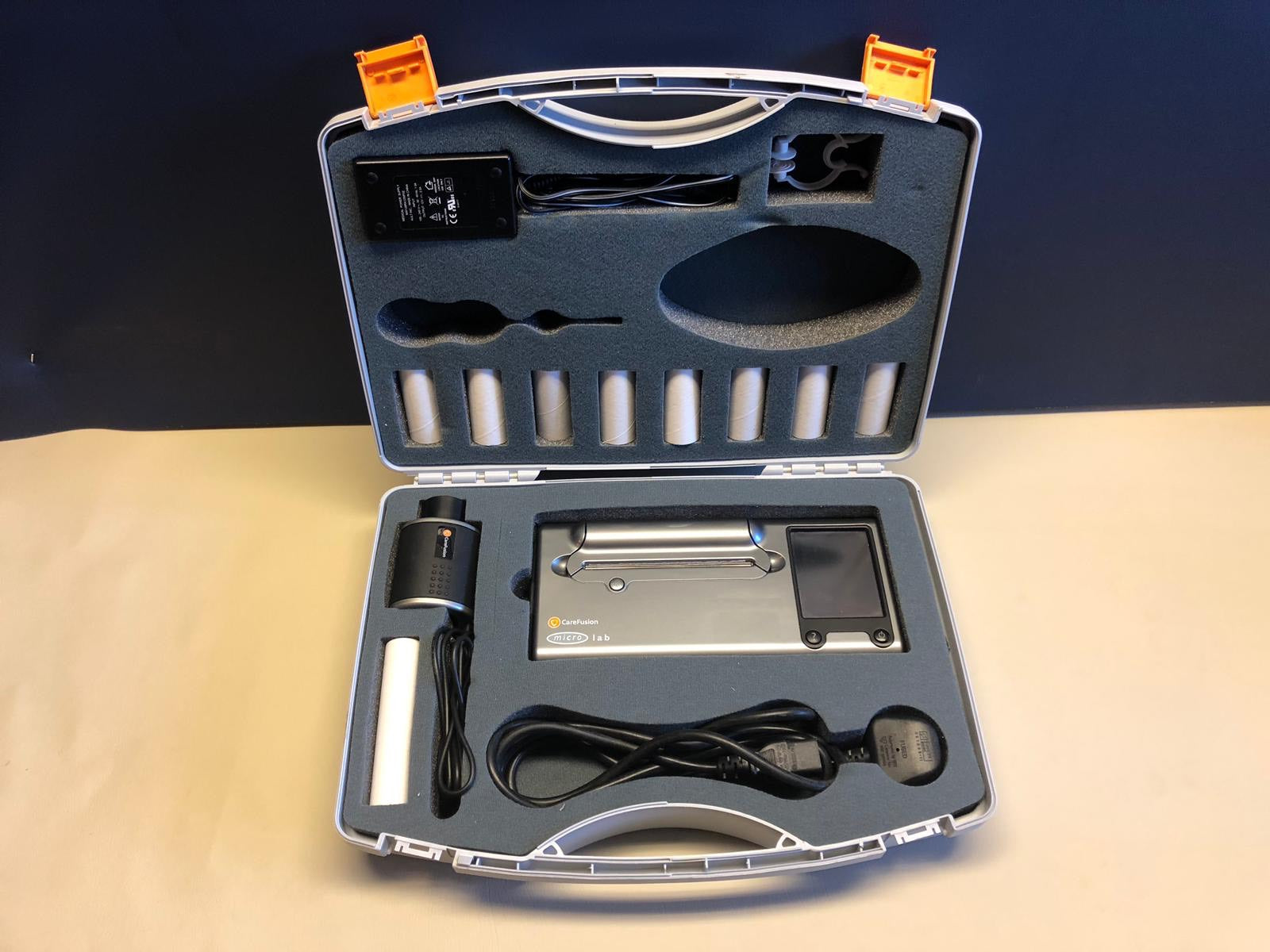

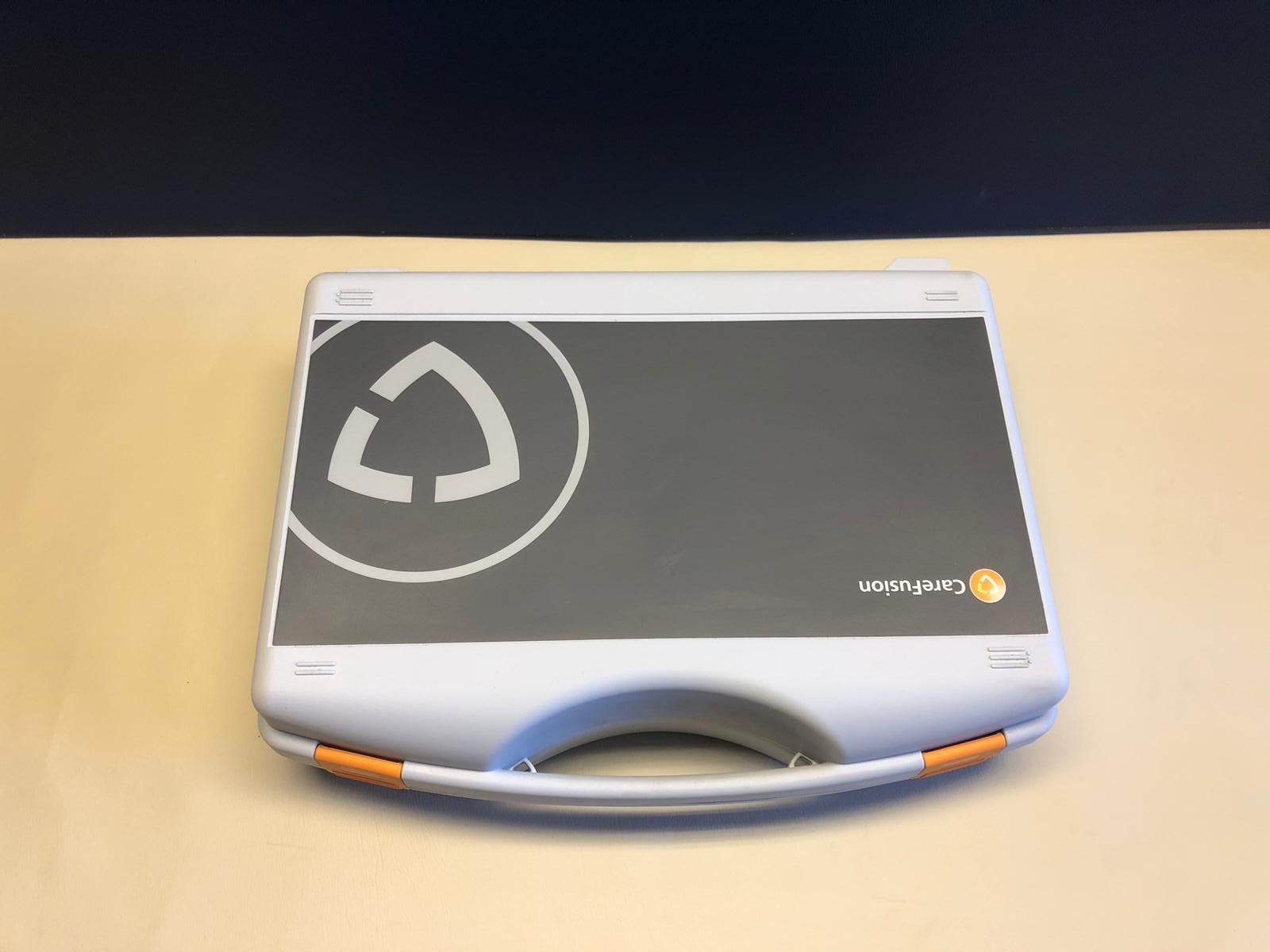

Reconditioned CareFusion Microlab (Without Software)

• Fully compliant to ATS/ERS 2005 Standard
• High definition colour touch-screen
• Simple screen icon interface using stylus or optional MicroMouse
• Fast on-screen textual entry enabling comments and report writing
• Fast, quiet printer with easy load paper mechanism
• Fully customisable printout format
• Direct connection to external Hewlett Packard printers
• Unique contextual Help Screens (language selectable) with dedicated Help Button
• 41 inspiratory and expiratory indices measurable
• On-screen graphical child incentive device
• Large 2000 patient test memory
• Optional Spida 5 or SpidaXpert PC software
• Internationally recognised on-screen test quality assurance prompts (e.g. slow start, abrupt end etc.) ensuring quality test results
• Unique 'today's testing feature' - creating a list of patients tested or to be tested
• Numerous predicted values and languages selectable
• 'Lung Age' assessment and textual result interpretation by ATS (9), BTS-NICE (10) or Enright (11)
• Body Mass Index and Dyspnoea Score
• Bronchodilator and/or Steroid assessment

One of our best sellers! This spirometer is in used but in great condition at a fraction of the recommended retail price, all of our microlab spirometers are calibrated in house to ensure that they are up to standard to ensure customer peace of mind. Fully tested and functional ready for use all of our refurbished equipment come with a 1 year warranty.

Spirometry specifications
• Measurements (forced): VC, FEV.75, FEV1, FEV3, FEV6, FVC, PEF, FEV.75/VC, FEV.75/FVC, FEV1/VC, FEV1/FVC (FER), FEV3/VC, FEV3/FVC, FEV.75/FEV6, FEV1/FEV6, FEF25 (MEF75), FEF50 (MEF50), FEF75 (MEF25), FEF25-75 (MMEF), FEF50/VC, FEF50/FVC, MMEF/FVC (FEF25-75/FVC), FIV1, FIVC, PIF, FIV1/FIVC (FIR), FIF25 (MIF75), FIF50 (MIF50), FIF75 (MIF25), R50 (FEF50/FIF50), MET25-75, FET, MVV (ind.)
• Measurements (relaxed): EVC, IVC, IC, VT (TV), Ti, Te, Ti/Ttot., VT/Ti (TV/Ti), IRV, ERV, FR
• Tests per Subject: 5 relaxed VC manoeuvres and 8 forced manoeuvres for each baseline and two post examinations.
• Predicted Values: Various - depends upon national preference (including NHANESIII)
• Transducer: Micro Medical Gold Standard Bi-Directional Digital Volume
• Resolution: 10ml volume 0.025l/s flow
• Accuracy: ±3% to ATS recommendations - Standardisation of Spirometry ATS/ERS 2005 update

General specifications
• Storage: 2000 patients with tests including Flow/Volume loops and Volume/Time graphs
• Printer Output: 13mm/s (avg)
• Power Supply: Input: 100-240V AC 50-60Hz Output: 12V 2.5A
• Battery Pack: Rechargeable NiMH 8.4V 1Ah
• Dimensions: 25.5cm x 12cm x 3.5cm Transducer 50 x 60 x 90mm
• Weight: 630g (excluding transducer)
• Temperature: The instrument will operate in a uniform environment of 0°C - 40°C, out of direct sunlight
• Operating Humidity: 30-90% non-condensing
• Storage Temperature: -20°C to +70°C
• Storage Humidity: 10% to 90% RH
• Connectivity: RS232 serial and USB 1.1

All of our refurbished equipment come with a 1 Year Warranty
