ndd Easy on-PC Spirometer Hospital package (Spirette only)

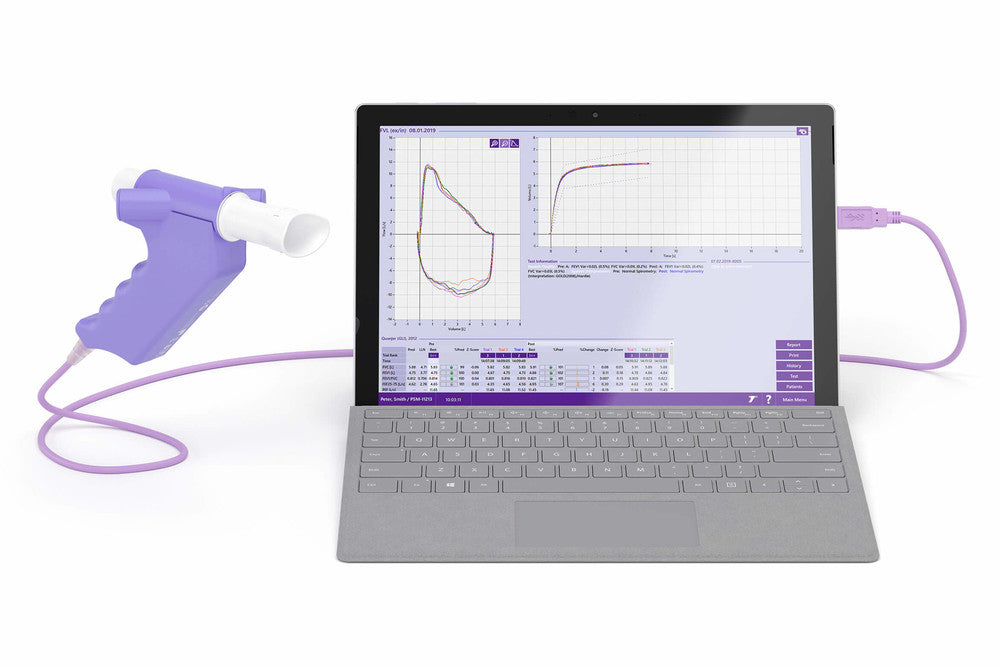

EasyOn-PC is a lightweight spirometer that connects directly into a PC or laptop for real-time spirometry diagnostics.

The Easy on-PC comes complete with diagnostic spirometry software. The handheld sensor utilises the ndd TrueFlow technology to measure the flow of air in and out of the patients’ lungs. Guaranteed for life, this technology eliminates problems associated with traditional methods of flow measurement and helps make the ndd products extraordinarily fast, reliable, accurate and error free.

There are no moving parts, no codes to enter and no screens to catch sputum. The ultrasonic flow measurement is independent of gas composition, pressure, temperature, and humidity thus eliminating errors due to these variables. The software is free of any licencing with any updates provided free of charge for life. This means the device can be used across multiple PC’s with the software installed. The software can be fully integrated into patient record systems such as EMIS and SystmOne*.

Spirometry software and future updates are free

The EasyOn-PC software can be updated free of charge for life; this can be downloaded from the ndd website. The software can be installed on as many computers as necessary without the need for user licences or dongles. The database can also be stored onto a shared network drive which can be accessed by any computer installed with EasyOn-PC software, allowing results to be viewed in a different location.

PC tablet option available

The EasyOn-PC is available as a package with optional Windows touch screen tablet PC, pre-installed with EasyOn-PC software. Using the lightweight tablet and EasyOn-PC together makes this the perfect portable spirometry solution. The results can be printed or exported to PDF and other formats.

Latest GLI 2012 predicted values

The GLI equations are the first global multi-ethnic reference equations for spirometry that span all-ages. Data from 74,187 healthy non-smokers (57.1% females) aged 3-95 years were used to derive the equations using modern statistical methods. This includes the development of age dependent lower limits of normal.

Challenge test routine with Methacoline and Mannitol protocols

Challenge testing protocols are pre-set in the software for Methacoline including Chai et al, ATS Short and ATS Long. Mannitol protocol is also included. The dosage to be administered is displayed in a table on screen and a timer will countdown to show when spirometry needs to be performed. The software displays the % drop from the previous step and also from the baseline. A message is displayed when a positive result has been achieved and the test is complete.

Powerful trend facility

Single or multiple parameters can be shown as actual values and percent predicted. This allows the user to track a patient’s lung function over time.

Incentive screens

The software has three child incentives, the balloon, the monkey and the birthday cake to encourage children to perform correctly. The incentives can be displayed in a large format on screen whilst still being able to view the flow/volume and volume/time graphs in real-time.
