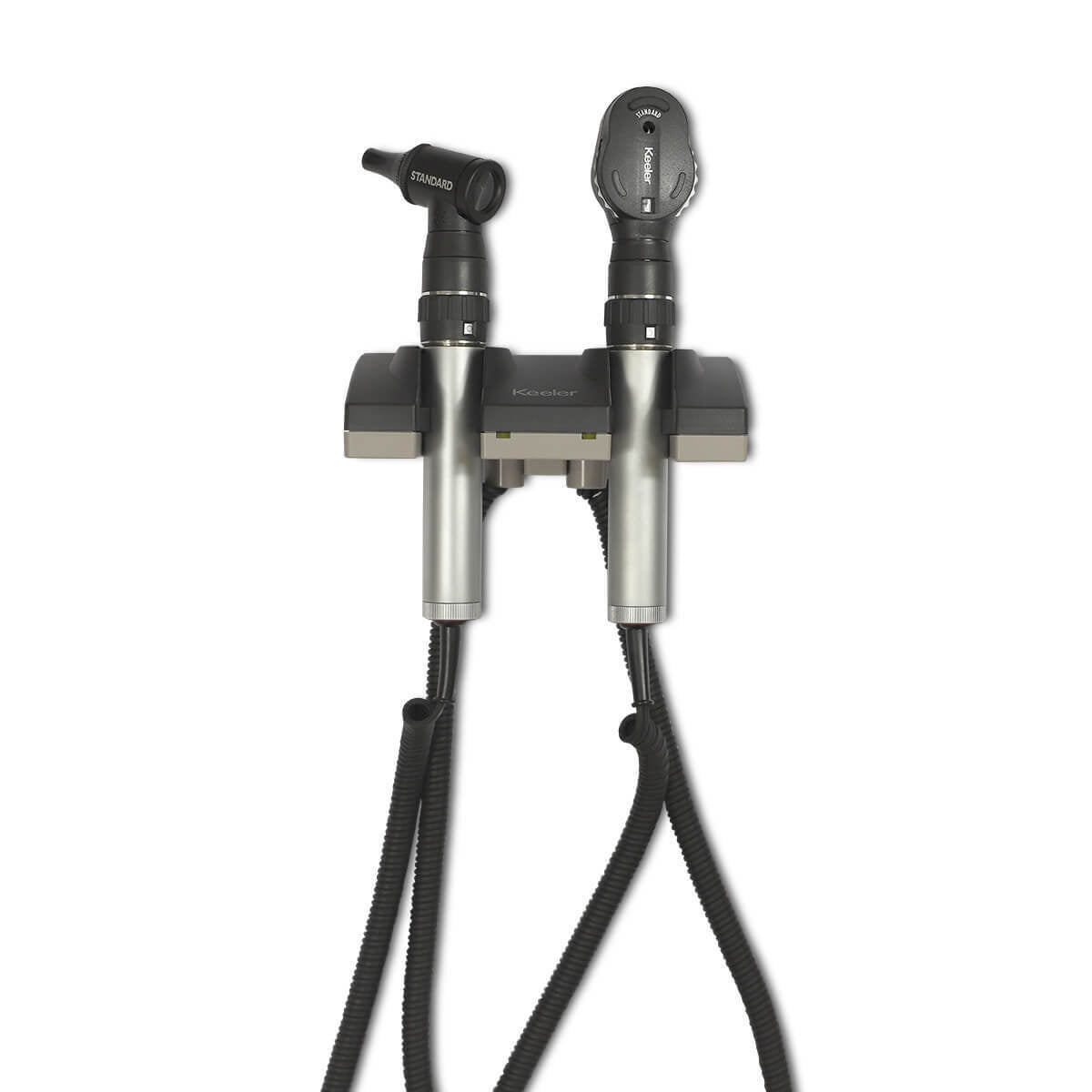

Keeler Standard Ophthalmoscope and Standard Otoscope 240v Wall Mounted Unit

• The new compact wall mounted design is ideal for ward, surgery, consulting room and casualty use.
• Strong coiled tangle-free cable permits instrument use up-to 3 metres from the transformer.
• The robust construction is ideally suited to the busiest working conditions.
• Automatic illumination when instruments are removed from cradle with LED confirmation.

Apertures, Graticules & Filters

Wide angle - Illuminates the largest area of fundus for the best possible general diagnosis through a dilated pupil.

Intermediate - Permits easier access through an undilated pupil and in peripheral examination. Particularly useful in paediatric examination.

Macular - Designed specifically for examination of the macular region of the fundus where a larger beam would create excessive pupilary reaction or discomfort.

Slit - Used primarily to determine retinal elevations and depressions but may also be used to assess anterior chamber depth.

Fixation Cross - Projects a graticule onto the retina for assessment of the degree and direction of eccentric fixation.

Red Free - The red free filter is used to examine blood vessels in fine detail. By filtering out the red light, blood vessels are silhouetted black against a dark green background.

Cobalt Blue - Used in conjunction with fluorescein dye for the detection and examination of corneal scars and abrasions.
