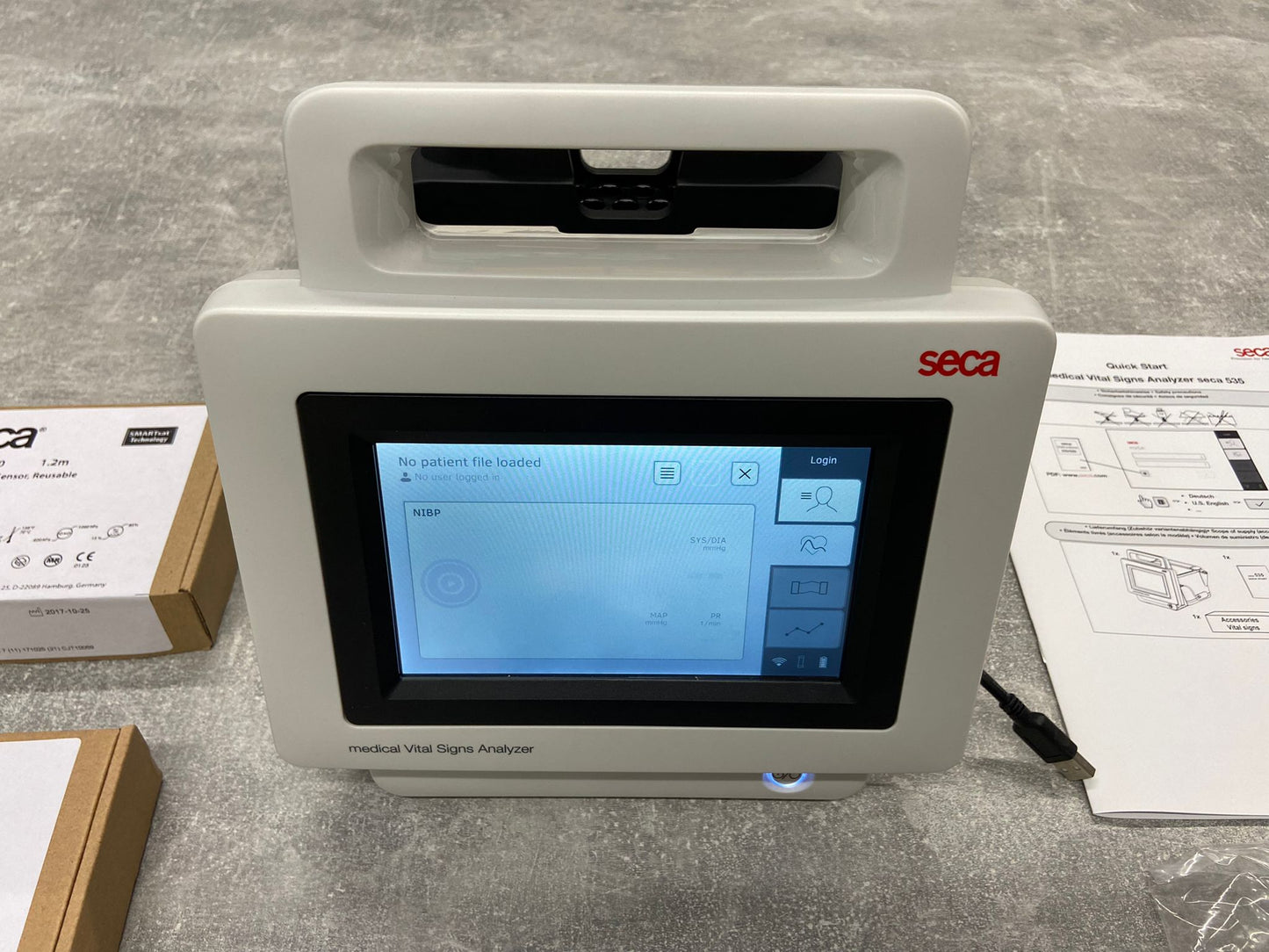

BOXED AS NEW - Seca 535 Vital Signs Monitor - with seca spO2 and G3 Tympanic Temp

BOXED AS NEW - Seca 535 Vital Signs Monitor - with seca spO2 and G3 Tympanic Temp

£1,147.47 GBP
£1,147.47 GBP
Sale Sold out
Shipping calculated at checkout.

BOXED AS NEW Seca 535 - with seca spO2 and G3 Tympanic Temp with Seca 475

Seca 535 Vital signs monitor NEW RRP £1995+VAT!!!

All of our reconditioned / display equipment is fully serviced and tested prior to despatch with a 1 year warranty

Product Properties

  • Easy to operate spot-check monitor to capture all basic routine patient vitals in less than 60 seconds
  • Quick and accurate blood pressure measurement in under 20 seconds
  • Configurable seca EQ BP® average mode (BP30) provides true screening of hypertension
  • seca scale connectivity through seca 360° proximity: One integration interface for all seca devices
  • World-class service program with no downtime
  • Long lasting battery for up to 150 measurements on one single charge
  • Convincing data storage: All measurements stored and available for later processing
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer

seca mVSA – Where ease meets accuracy

Acquiring patient’s vitals is a routine task, performed on almost every patient. The seca mVSA 535 was designed to make this task as easy and efficient as possible. Staff at any level can operate the spot-check monitor due to its intuitive touch screen and self-explanatory user interface. The vitals capture is simple and fully validated for HL7 and many EMR systems. Connectivity to seca scales and measuring stations due to seca 360° proximity is also a plus as well as the unique seca EQ BP® technology. The seca mVSA fits perfectly into your existing workflows and frees up time and resources to improve patient care.

Key Technical Data

Temperature module: Option 1: Filac™ temperature oral/axillary  Option 2: Genius™ temperature module SpO₂ module: seca SpO2 module Power supply: Built-in power adapter, internal rechargeable lithium-ion battery Net weight: 0.4 sts / 2.7 kg Ports: Ethernet, USB 2.0, Wi-Fi Product width: 254 mm Product height: 262 mm Product depth: 278 mm Display: 7" Touchscreen-Display Blood pressure measurement method: Oscillometric, deflation or inflation measurement switchable between single measurement (seca EQ BP®) and configurable multiple measurements (BP 30) Measurement accuracy at ambient temperature 16 °C – 33 °C (60.8 °F – 91.4 °F): Option 2: Target temperature: 36.7 °C 38.9 °C (98.1 °F 102 °F) ± 0.1 °C ( ± 0.2 °F) Measurement accuracy at target temperature 25 °C (77 °F): Option 2: Target temperature: 33 °C 42 °C (91.4 °F 107.6 °F) ± 0.2 °C ( ± 0.4 °F) Blood pressure measurement certainty: Excess pressure limit 300 mmHg; automatic pressure release at > 300 mmHg Blood pressure measurement time: Normal: 15 - 20 sec / max. 90 sec (adults) Blood pressure measurement range – deflation: pSYS: 25 - 280 mmHg pDIA: 10 - 220 mmHg pMAP: 15 - 260 mmHg Blood pressure measurement range – inflation: pSYS: 77 - 200 mmHg pDIA: 45 - 190 mmHg pMAP: 56 - 193 mmHg Blood pressure measurement accuracy – inflation (clinically validated according to ISO 81060): Mean deviation systole 0.94 mmHg; Standard deviation systole 3.84 mmHg; Mean deviation diastole 0.57 mmHg; Standard deviation diastole 3.17 mmHg Blood pressure measurement accuracy – deflation (clinically validated according to ISO 81060): Mean deviation systole 0.39 mmHg; Standard deviation systole 2.57 mmHg; Mean deviation diastole 0.43 mmHg; Standard deviation diastole 1.73 mmHg Blood pressure pulse rate range – deflation: 30 - 240 bpm Blood pressure pulse rate range – inflation: 45 - 200 bpm Blood pressure pulse rate accuracy: max. +/- 3 bpm SpO₂ measurement method: Pulse oximetry SpO₂ measurement range: 0 - 100 % SpO₂ measurement accuracySpO2 - resting (60 % - 100 %) ± 2 Arms;
SpO2 - in motion (70 % - 100 %) ± 3 Arms SpO₂ pulse rate measurement range: Pulse rate PR (Standard) 30 bpm to 240 bpm;
Pulse rate PR (Enhanced) 20 bpm to 300 bpm SpO₂ pulse rate measurement accuracy: ± 2 bpm Temperature measuring method:  Option 1: Oral/axillary (direct or predictive) Option 2: in Ear Temperature measuring range: Option 1: Direct 30 °C - 43 °C (86 °F - 109.4 °F); predictiv 35.5 °C - 42 °C (95.9 °F - 107.6 °F)  Option 2: 33 - 42 °C / 91.4 - 107.6 °F Temperature Measurement Accuracy: Option 1:  Direct ± 0.1 °C (± 0.2 °F)Predictive (for 95 % of measurements) ± 0.1 °C (± 0.2 °F) Temperature measurement response time: Option 1: Predictive (oral) 3 - 10 sec.; Predictive (axillary/rectal) 8 - 14 sec.; Direct 60 - 120 sec  Option 2: < 2 sec.
Scope of Delivery

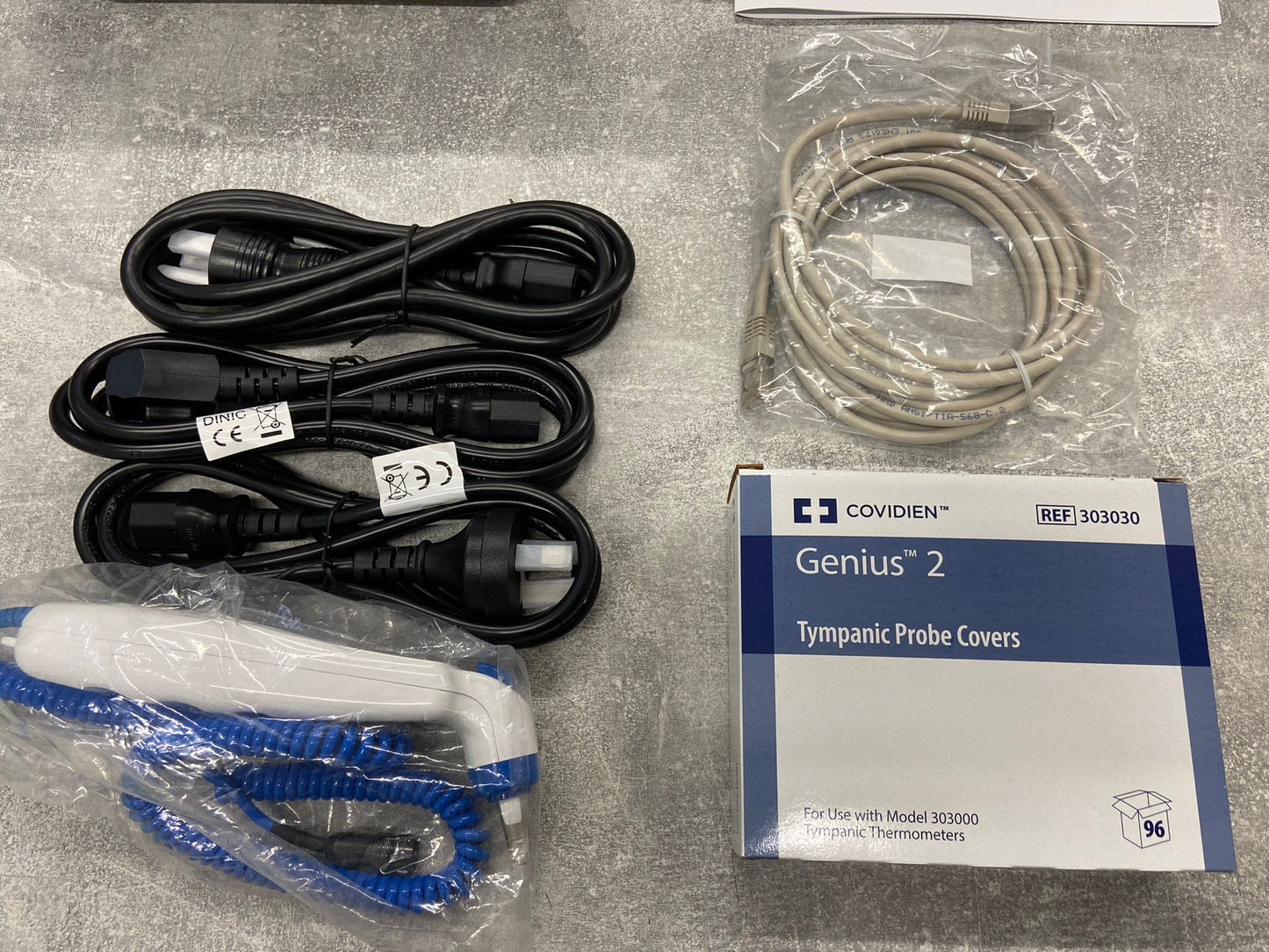

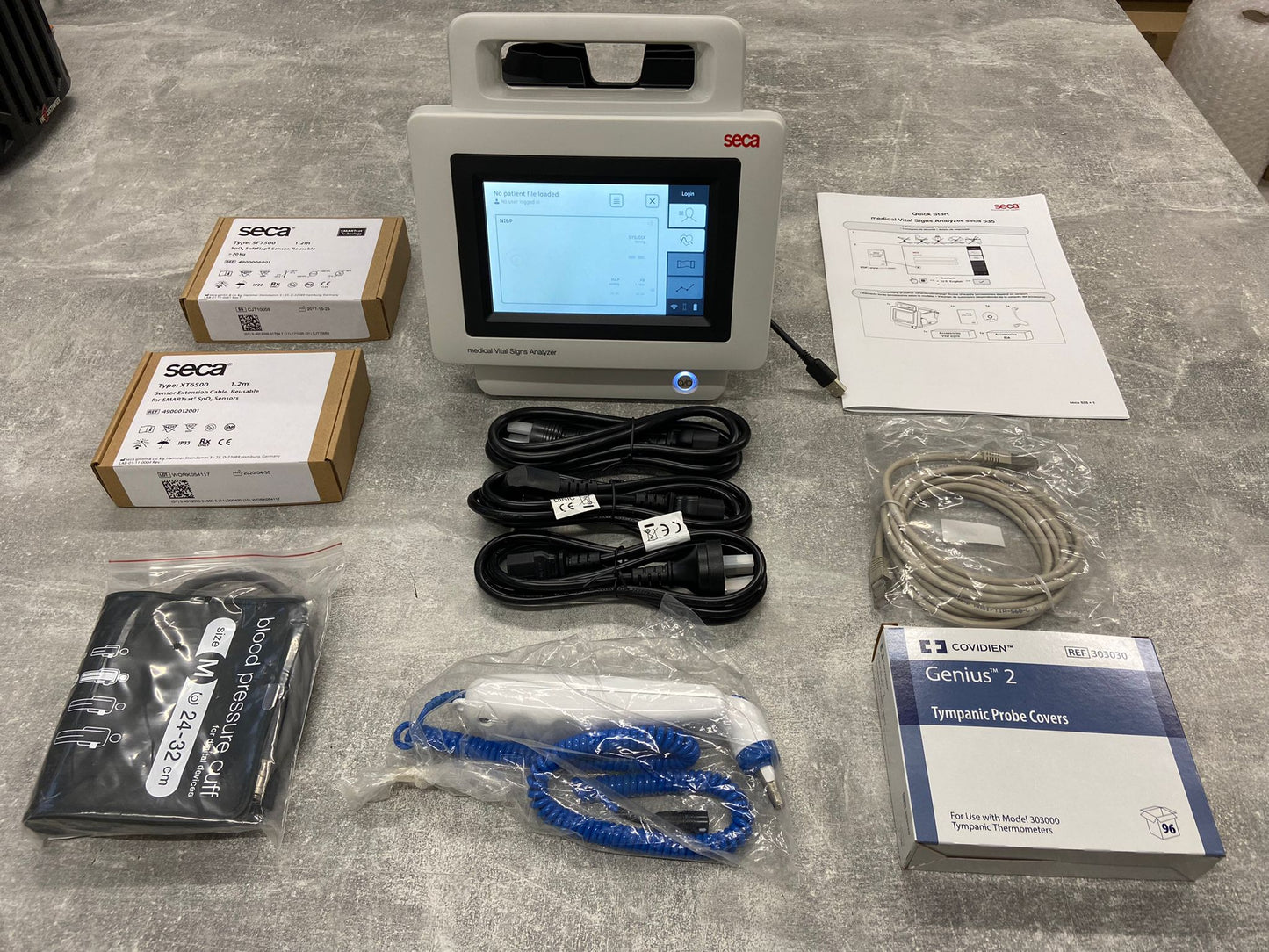

  • Removable SmartBucket with integrated Vital Signs Moduls: for blood pressure/Temp/SpO2 measurement
  • Monitor with power cable

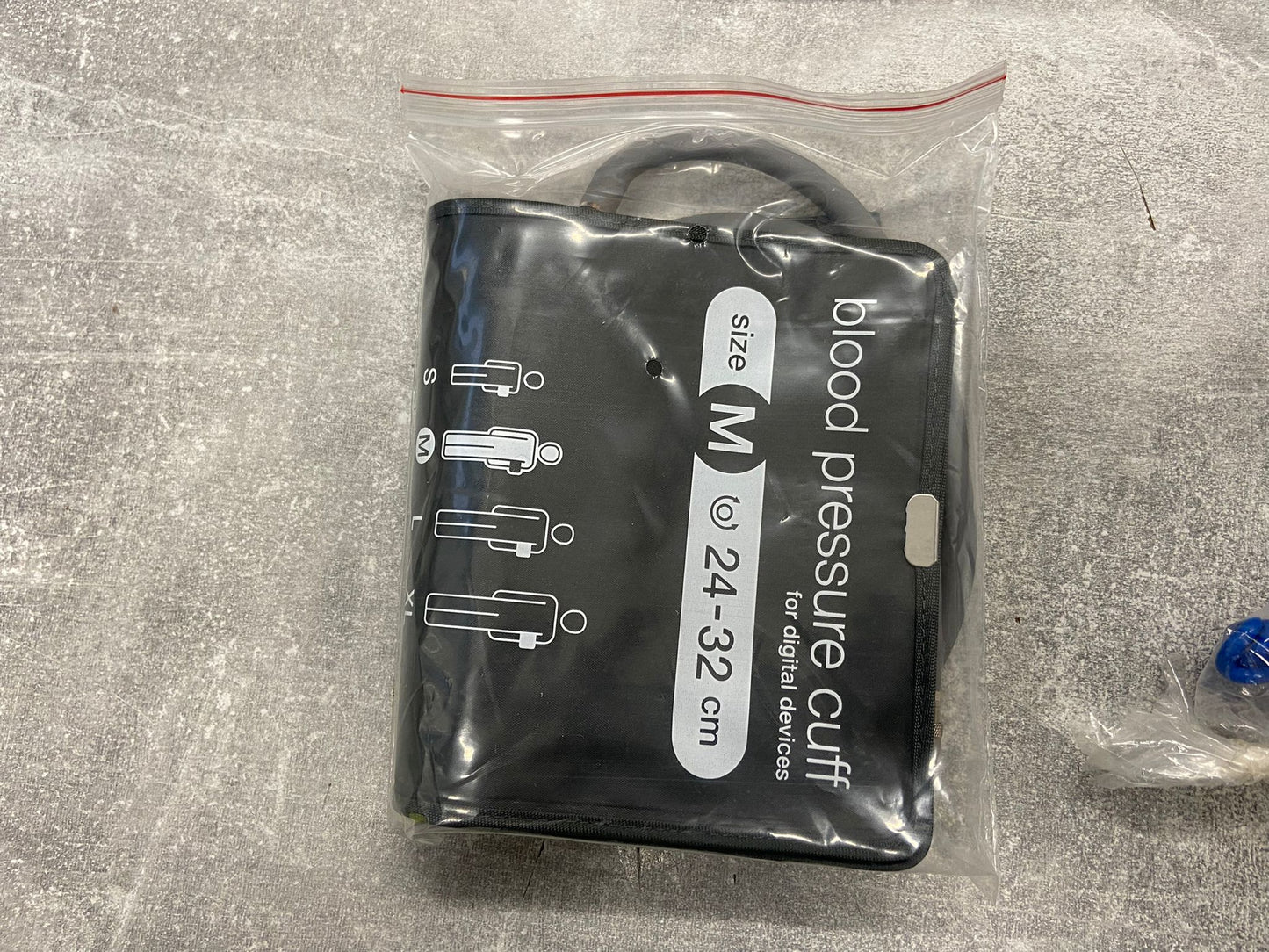

  • Blood pressure cuff (reusable), size M

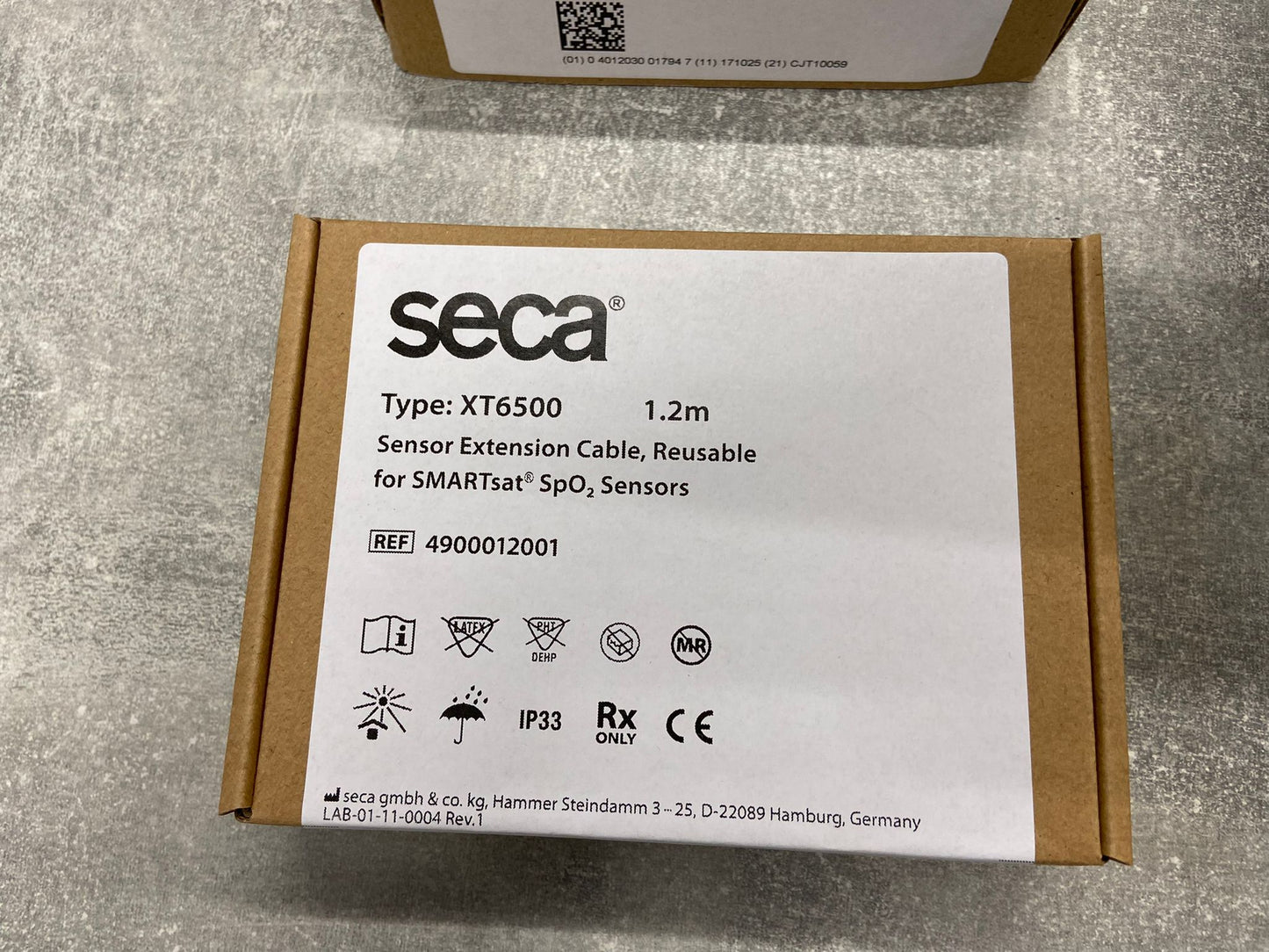

  • seca SpO2 cable extension
  • seca SpO2 SoftFlap® sensor (clip for adults)
  • Option 2: 1x Genuis™ 2 Covidien Genius™ probe covers (Box á 96 pcs)
  • Option 2: Genius™ 2 Tympanic in-Ear thermometer
  • Trolley sold seperately
